Hi-Capacity R180 510 differential cover

$15.00 - $595.00
  • Hi-Capacity R180 510 differential cover
  • Hi-Capacity R180 510 differential cover
  • Hi-Capacity R180 510 differential cover
  • Hi-Capacity R180 510 differential cover
  • Hi-Capacity R180 510 differential cover

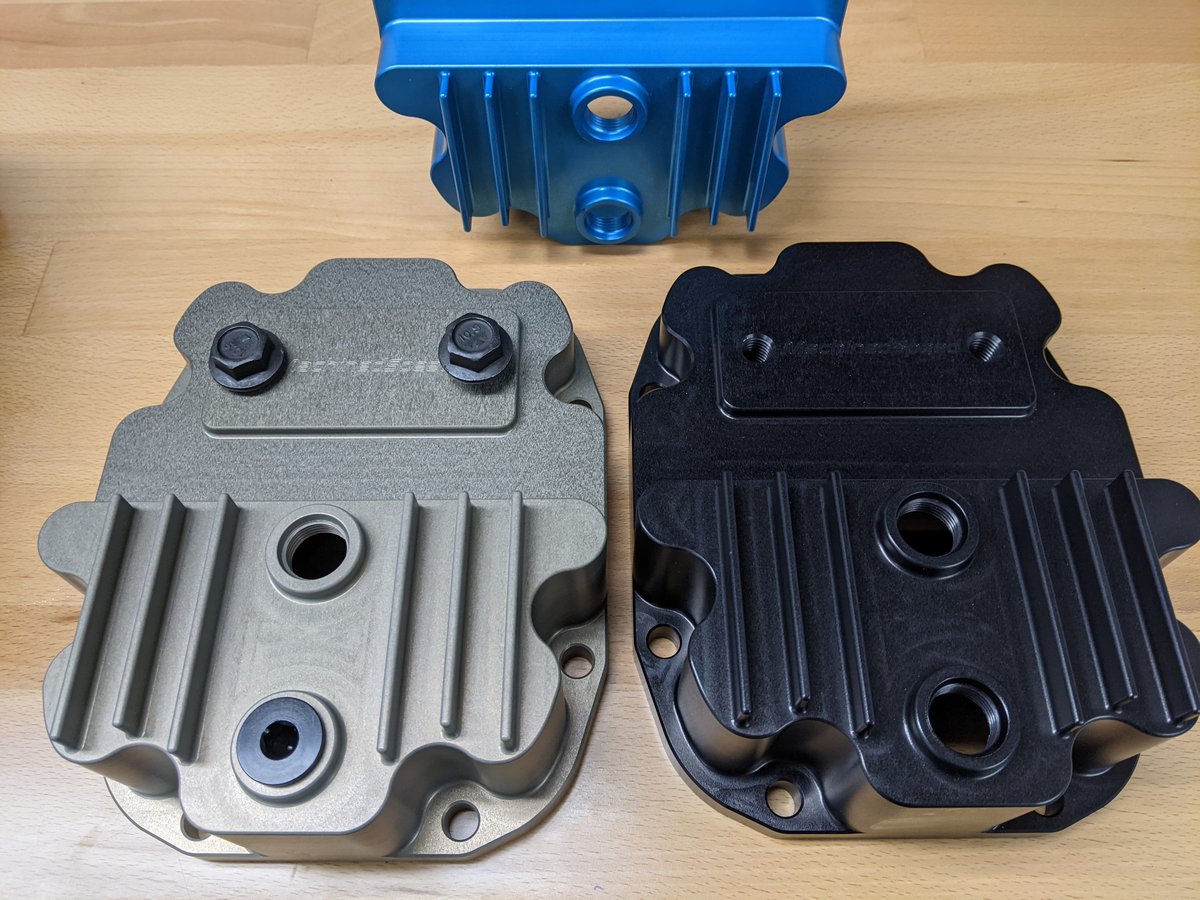

This is a custom differential cover I designed for use on the Datsun 510 using a Subaru R180 differential. Carved from solid billet 6061 aircraft aluminum. All edges radiused or chamfered. Fill and drain are -8 ORB o-ring boss ports. No leaky npt plugs. ORB ports allows easy fluid changes and easy expansion to a full on diff cooler setup if needed. Utilizes the factory plastic subaru vent which is baffled by the OE Subaru gasket. Very stiff internal structure should add extra rigidity to the diff case. Holds roughly 1/3+ more oil than a standard cover.

Machined anodized finish.
Two color options Clear( silver) or Black

Ships with a genuine Subaru metal gasket, vent, and two XRP -8 ORB internal hex plugs.

Guaranteed fitment on 510 chassis. Should also work on Datsun S30 and R180 Subaru cars.

New flange head gray plated bolt set also available separately. (see last photo)

ARP Stainless Steel Bolts are another option for shiny mounting M10x1.25 763-1003 available at your local speed shop.
